P200 Series UAVs
A New Industry Standard, Redefining Application Excellence
Featuring a powerful propulsion system, this UAV offers a wide range of industrial payloads and delivers ultra-long endurance. Powered by a domestically developed, industry-leading octa-core chip with 21T of computing power, it excels in visual AI recognition and supports seamless cloud-edge collaboration for efficient operations. Its compact and portable design ensures exceptional performance.
Safe RTH with Superior Anti-Interference Capacities
In environments where satellite signals and data links are disrupted, the UAV utilizes visual positioning fusion navigation algorithms and frequency-hopping image transmission technology to ensure safe operation and reliable return-to-home functionality.
AI Obstacle Avoidance for Precision Navigation
Equipped with six-direction binocular sensors and an AI obstacle avoidance algorithm, the UAV can precisely detect small obstacles, ensuring safe and stable flight.

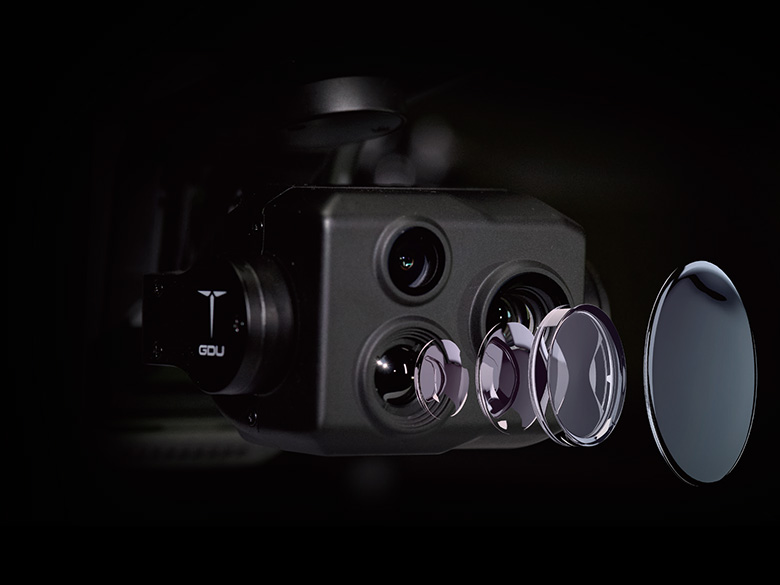

10x Optical Zoom, Lightning-Fast Focus
The 48 MP wide-angle and telephoto cameras deliver continuous lossless zoom with phase detection autofocus, keeping distant targets sharp and instantly locked.

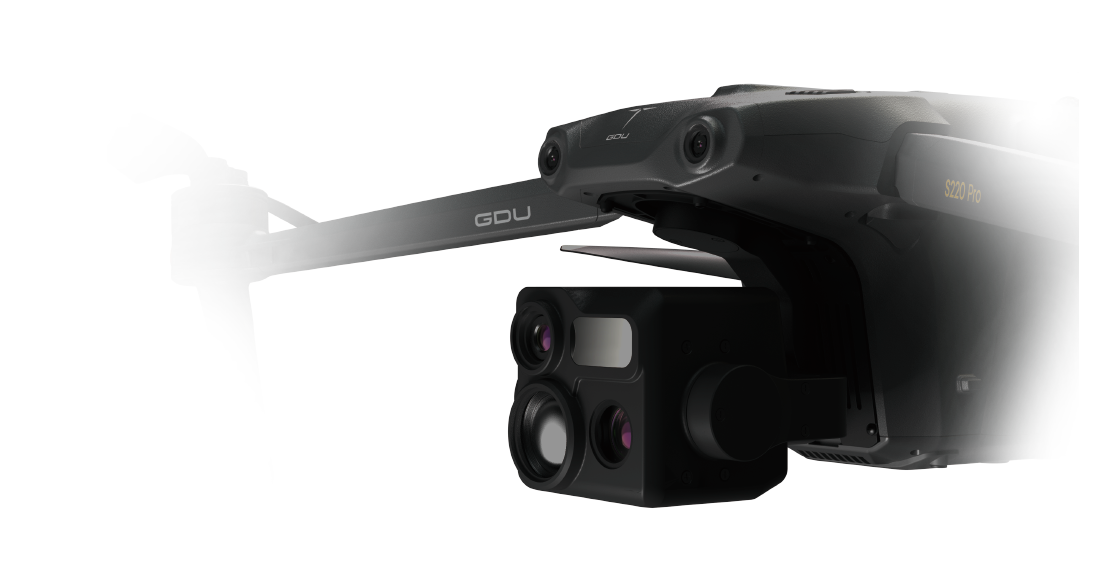

1K Infrared Imaging, Every Detail Captured
With 1K infrared thermal imaging, 2K AI-enhanced super-resolution photography, and 32x AI super-resolution zoom (exclusive to P220 Pro 1K), capturing every detail with precision.

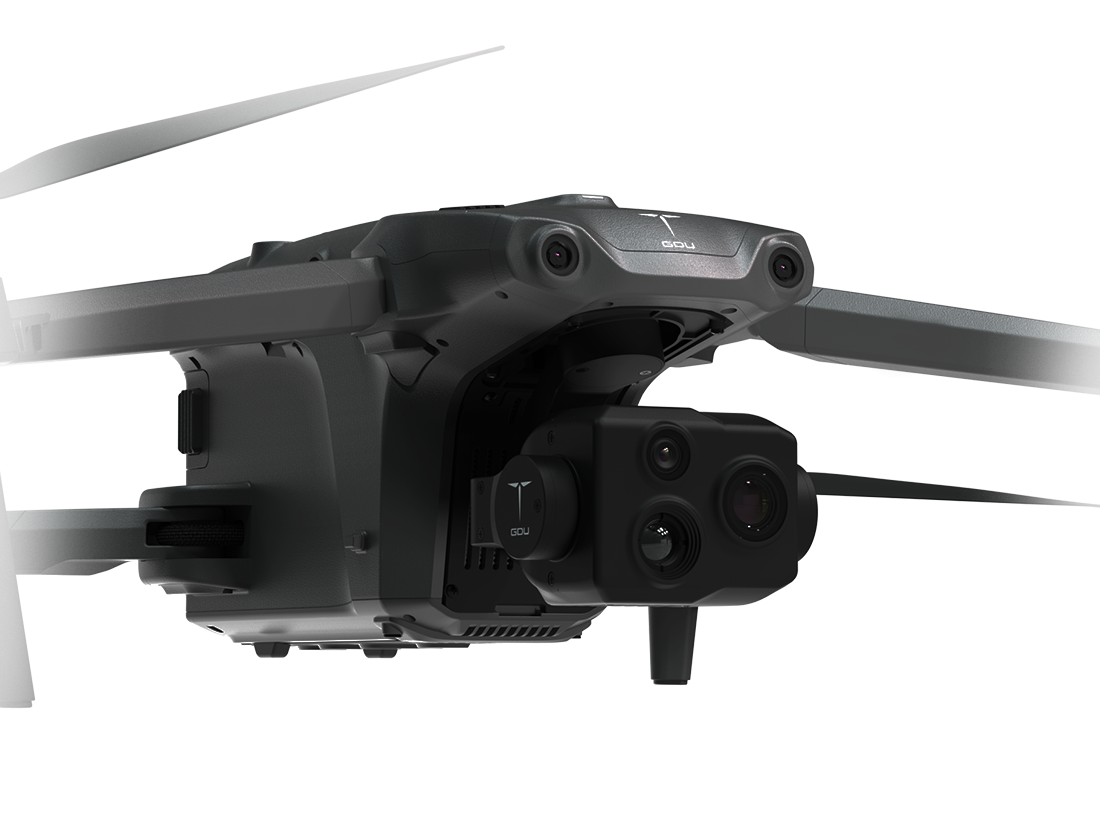

640 Infrared, 1K Super-Resolution
This solution features a 640-resolution thermal imager, upgradable to 1K resolution using AI-powered UHR technology. It supports 32x hybrid zoom, clearly revealing distant targets. The high-precision thermal imaging enables all-weather, continuous monitoring with zero blind spots.
Link Zoom Between Zoom and Infrared Thermal Cameras
The 48 MP wide and zoom visible-light cameras support continuous 10x lossless optical zoom and up to 160x hybrid zoom. With Phase Detection Auto Focus (PDAF) as fast as 60 milliseconds, targets near or far are captured with remarkable clarity and instantly locked in, ensuring no moment is missed.
AI Ultra-Sensitivity, 4K Full-Color Starlight Night Vision
The AI ultra-sensitivity feature offers three modes, achieving a maximum ISO of 600000. Even under starlit skies, it delivers pristine, crystal-clear 4K full-color night videos.
AI Tracking with Relentless Precision
AI-advanced tracking function offers unerring accuracy. Once a target is selected, continuous tracking is maintained with precise positioning and automatic magnification adjustment. Seamless switching between targets is supported, and a target momentarily lost can be automatically reacquired.
Laser Rangefinding up to 1800 m
The integrated laser rangefinder offers a maximum range of 1800 m. With intelligent laser-assisted pinpointing, the target's coordinates (latitude and longitude) and distance from the aircraft can be measured with high accuracy.
Versatile Payloads
Versatile Payloads, Expansive Applications
A wide range of payloads are supported, including dual-sensor, triple-sensor, 640 quad-sensor, 1K quad-sensor, speaker, spotlight, AI box, and more, meeting complex operational needs of multi-task scenarios. One machine with multiple uses, more application scenarios.
Specifications
P200 Series Specifications
Dimensions, weight, flight performance, camera, thermal, laser, and protection data for the P200, P220, P220 Pro 640, and P220 Pro 1K.
| Specification | P200 | P220 | P220 Pro 640 | P220 Pro 1K |
|---|---|---|---|---|
| Dimensions (folded) | 175 x 272 x 148 mm | 175 x 272 x 148 mm | 175 x 272 x 148 mm | 175 x 272 x 148 mm |
| Dimensions (unfolded) | 613 x 699 x 160 mm | 613 x 699 x 160 mm | 613 x 699 x 160 mm | 613 x 699 x 160 mm |
| Diagonal distance | 486 mm | 486 mm | 486 mm | 486 mm |
| Weight | 1780 g | 1780 g | 1860 g | 1860 g |
| Max take-off weight | 2050 g | 2050 g | 2050 g | 2050 g |
| Max flight time | 42 min | 42 min | 39 min | 39 min |
| Max ascent speed | 8 m/s | 8 m/s | 8 m/s | 8 m/s |
| Max descent speed | 6 m/s | 6 m/s | 6 m/s | 6 m/s |
| Max wind speed | 11.8 m/s | 11.8 m/s | 11.8 m/s | 11.8 m/s |
| Max take-off altitude | 6000 m | 6000 m | 6000 m | 6000 m |
| Communication distance | 15 km (FCC), 8 km (CE/SRRC/MIC) | 15 km (FCC), 8 km (CE/SRRC/MIC) | 15 km (FCC), 8 km (CE/SRRC/MIC) | 15 km (FCC), 8 km (CE/SRRC/MIC) |
| Wide-angle visible light lens | 48 MP | 48 MP | 48 MP | 48 MP |
| Telephoto visible light lens | 48 MP, 10x optical, 160x hybrid | 48 MP, 10x optical, 160x hybrid | 48 MP, 10x optical, 160x hybrid | 48 MP, 10x optical, 160x hybrid |
| Thermal lens | - | 640 x 512 @ 30fps | 640 x 512 @ 30fps | 1280 x 1024 @ 30fps, 640 x 512 @ 30fps (option) |
| Laser ranging | - | - | 10-1500 m | 10-1500 m |
| IP level | IP43 | IP43 | IP43 | IP43 |
| Hovering accuracy (RTK) | Vertical: 1.5 cm + 1 ppm; Horizontal: 1 cm + 1 ppm | Vertical: 1.5 cm + 1 ppm; Horizontal: 1 cm + 1 ppm | Vertical: 1.5 cm + 1 ppm; Horizontal: 1 cm + 1 ppm | Vertical: 1.5 cm + 1 ppm; Horizontal: 1 cm + 1 ppm |
