S400E UAV
FLAGSHIP WORKPIECE, BORN FOR HIGH INDUSTRIAL EFFICIENCY
The S400E is a lightweight industrial-grade flagship UAV from GDU, designed with groundbreaking advancements in stability, autonomy, and intelligence. Equipped with industry-leading BVLOS (Beyond Visual Line of Sight) networking technology, it enables seamless, intelligent interconnection between multiple UAVs and control devices, significantly enhancing operational efficiency.
With a frame crafted from high-strength magnesium alloy, its foldable body ensures exceptional safety, stability, and portability. Advanced millimeter-wave radar combined with an integrated binocular sensing system provides comprehensive, omnidirectional obstacle avoidance. The onboard AI edge computing module delivers unparalleled precision, automation, and visualization capabilities for inspection operations.
Millimeter-wave Sensing for Enhanced Obstacle Avoidance, Both Day and Night
Safe RTH with Superior Anti-Interference Capacities
Cross-obstacle Communication via Multi-UAV Relay Networking
Tailored to Your Needs with Powerful Payload Capabilities

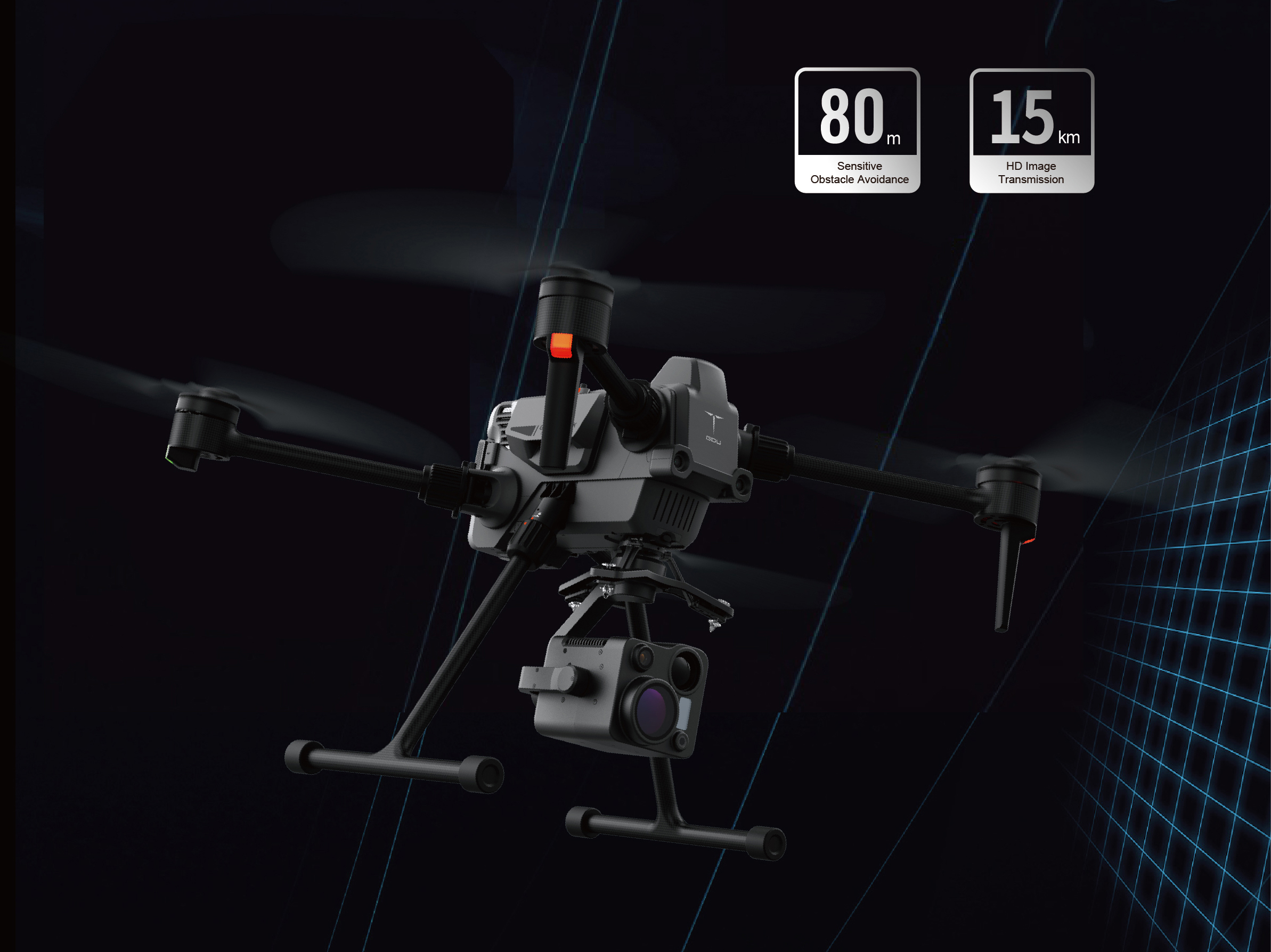

Millimeter-Wave Sensing for Enhanced Obstacle Avoidance, Day and Night
The pioneering "Visual + Millimeter-Wave Radar" dual-fusion obstacle avoidance system offers an impressive detection range of up to 80 m. It accurately detects small obstacles, such as high-voltage lines, overcoming the challenges of nighttime obstacle detection. This breakthrough enables 24-hour omnidirectional environmental awareness, ensuring safe operations even in the most complex scenarios.

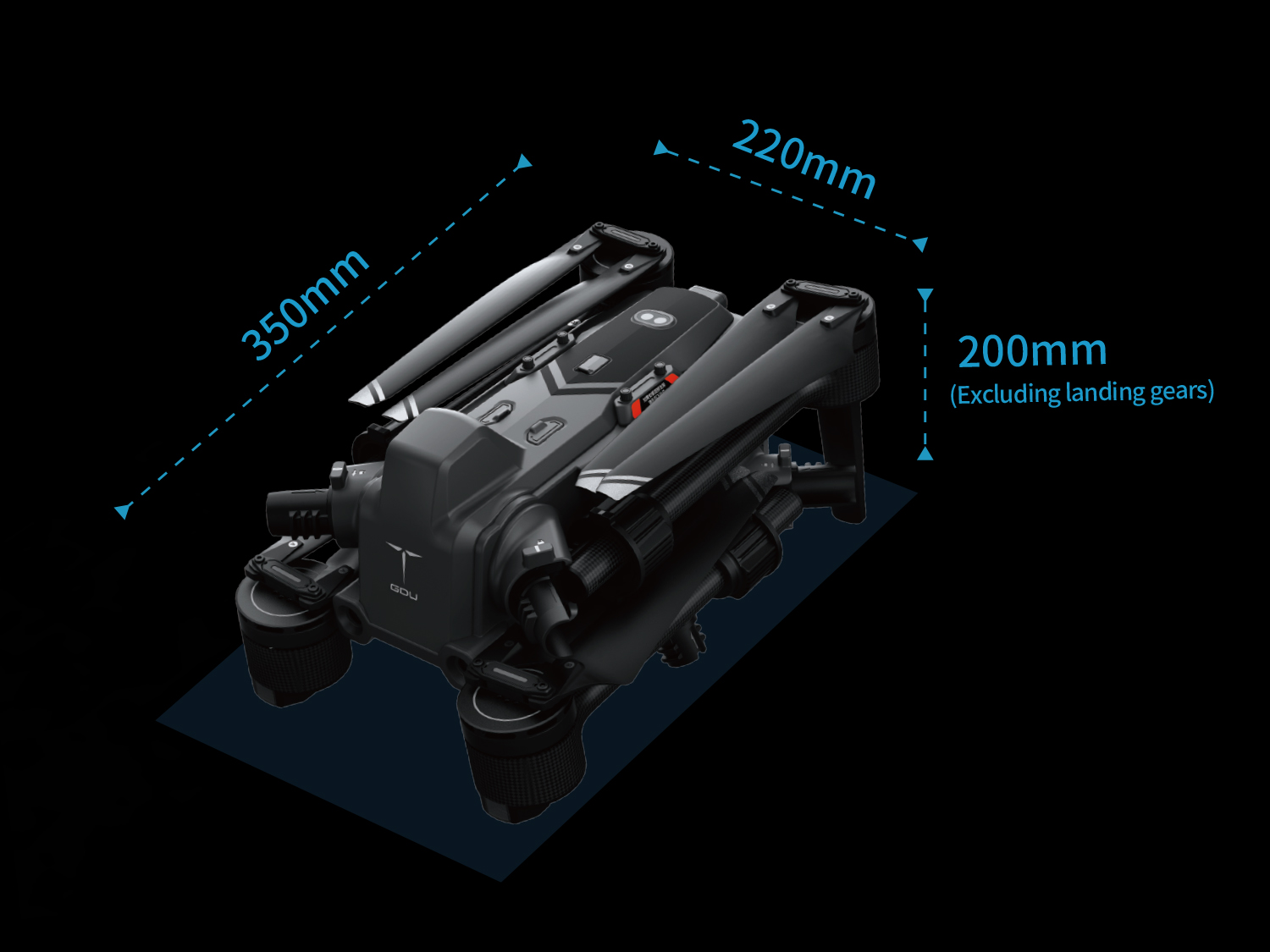

Professional Performance, Effortless Portability
With a super-large 3 kg payload capacity, the S400E meets the demands of diverse professional industries, supporting tasks such as power-line inspection and public safety through versatile payload configurations. When folded, it easily fits into a backpack, striking the perfect balance between professional-grade performance and field mobility.
Safe RTH with Superior Anti-Interference Capacities
Even in environments with satellite and data link interference, the visual positioning fusion navigation algorithm, paired with frequency-hopping image transmission technology, ensures a safe RTH.
Multi-UAV Connectivity and Cross-Obstacle Communication
Leveraging the "one-for-two/two-for-one/star-networking" technology, the S400E enables seamless multi-UAV relay networking, effectively overcoming traditional control radius limitations. Capable of penetrating building obstructions and navigating mountainous terrain, it ensures stable communication even in areas without network coverage, greatly enhancing operational flexibility in complex environments.
All-Weather Integrated Flagship Gimbal
This solution integrates five advanced modules: a 1/0.98-inch wide camera, a 34x continuous optical zoom camera, a 1K infrared thermal imager, a laser rangefinder, and a near-infrared (NIR) auxiliary light. Powered by 10.4T of AI computing performance, it significantly enhances imaging and perception capabilities. This solution transcends spatial boundaries and overcomes the day-night vision limitations, making it well-suited for tasks in smart city management, public safety, energy inspection, water conservancy, and forestry operations.
Specifications
S400E Specifications
Dimensions, weight, payload, flight performance, obstacle avoidance, and safety data for the S400E.
| Unfolded dimensions | 549 x 592 x 424 mm (propellers excluded) |
|---|---|
| Folded dimensions | 347 x 367 x 424 mm (tripod and propellers included) |
| Max take-off weight | 7 kg |
| Diagonal wheelbase | 725 mm |
| Payload capacity | 3 kg (safe flight speed reduced to 15 m/s with max load) |
| Max horizontal flight speed | 23 m/s (operated under sport mode in a no-wind condition) |
| Max takeoff altitude | 5000 m |
| Max wind-resistance level | 12 m/s |
| Max flight time | 49 mins (hovering in a no-wind or light-wind condition with battery reduced to 0% from 100%) |
| Hovering accuracy (GNSS) | Horizontal: +/- 1.5 m; Vertical: +/- 0.5 m |
| Hovering accuracy (vision positioning) | Horizontal: +/- 0.3 m; Vertical: +/- 0.3 m |
| Hovering accuracy (RTK) | Horizontal: +/- 0.1 m; Vertical: +/- 0.1 m |
| Positioning accuracy | Vertical: 1 cm + 1 ppm; Horizontal: 1.5 cm + 1 ppm |
| Ingress protection rating | IP45 |
| Video transmission range | 15 km (operated at a height of 200 meters without any interference) |
| Omnidirectional obstacle avoidance | Front: 0.7 m to 40 m (detects large metal objects 80 m away max); left and right: 0.6 m to 30 m (detects large metal objects 40 m away max); up, down, and back: 0.6 m to 25 m. Effective in an environment where it's sufficiently illuminated (over 15 lux). For more accurate obstacle sensing, keep the UAV at least 10 meters off the ground while in flight. |
| AI functions | Target recognition, follow, and inspection, available only when paired with compatible payload(s) |
| Flight safety | Equipped with ADS-B for avoiding civil airlines in the surrounding area |
